Electronic Face (CB25735E)

Details
Written by: Newton C. Braga

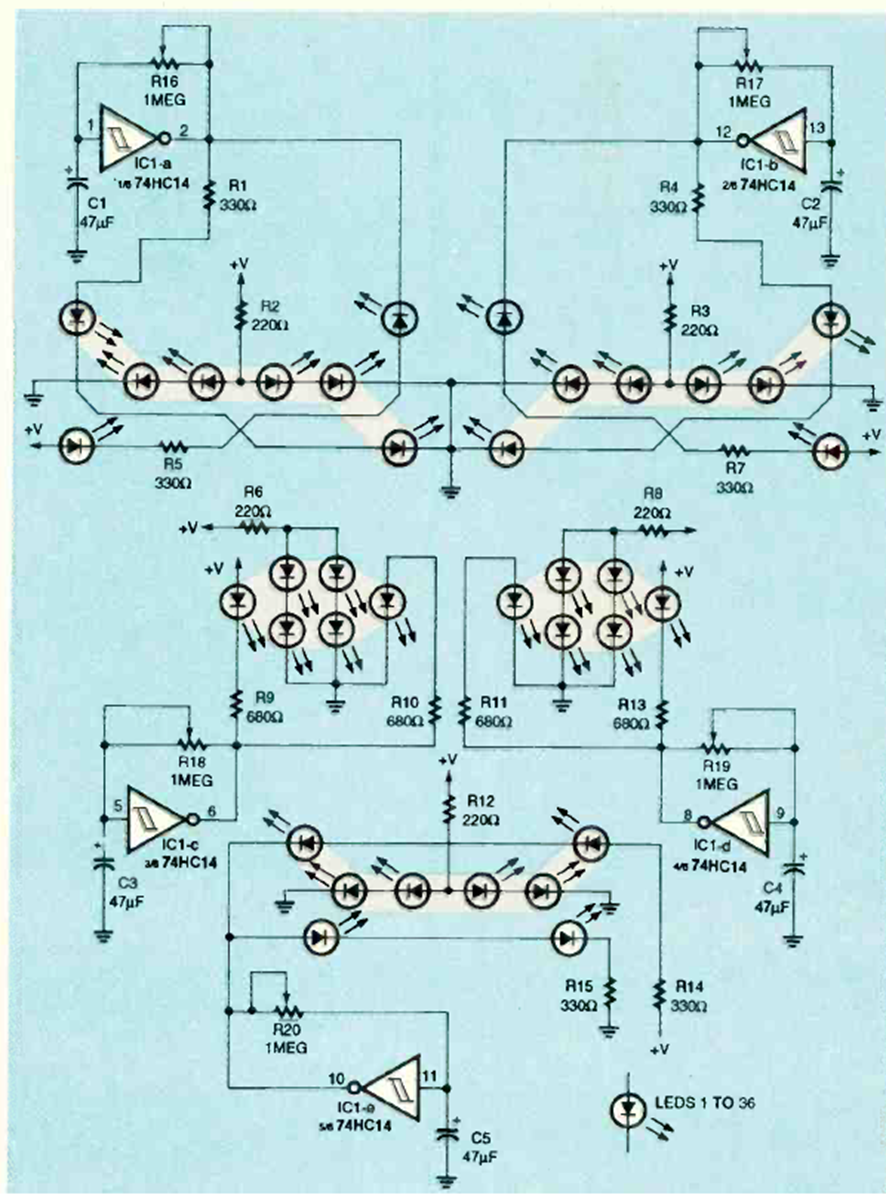

This decorative circuit was found in the July 1994 issue of Electronics Now magazine. It makes LEDs blink in a face-shaped allegory. The frequencies are given by the capacitors in the oscillators.
