Relay Switch (CB25864E)

Details
Written by: Newton C. Braga

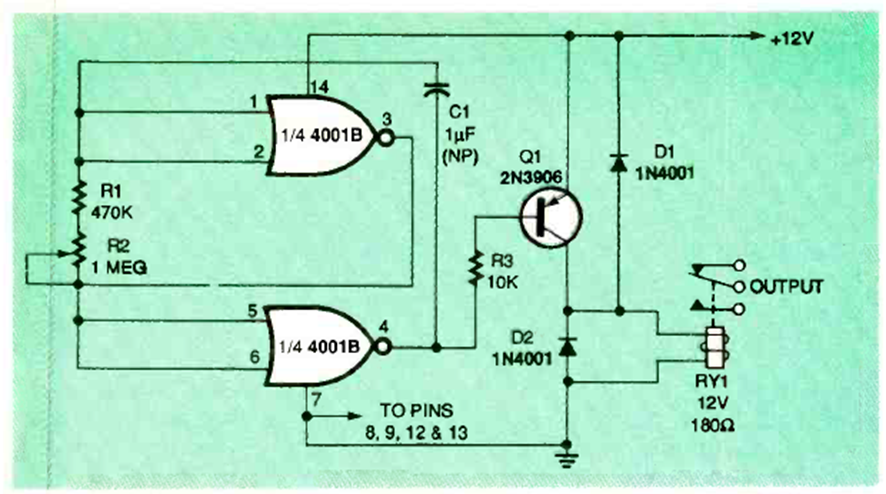

This CMOS 4001 oscillator alternately turns the relay on and off at times set by R2. The circuit is from Electronics Now magazine, June 1995.
