lasher fired in the dark 555 (CB25534E)

Details
Written by: Newton C. Braga

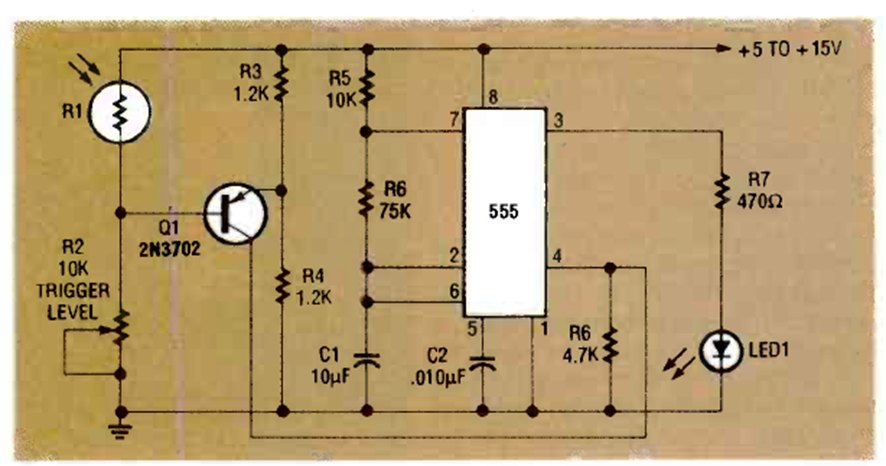

We found this circuit in the November 1992 Radio Electronics magazine. The circuit uses an LDR as a sensor and the transistor can be any general-purpose transistor.




| Clique na imagem para ampliar |
