Optical Communicator – Receiver (CB25536E)

Details
Written by: Newton C. Braga

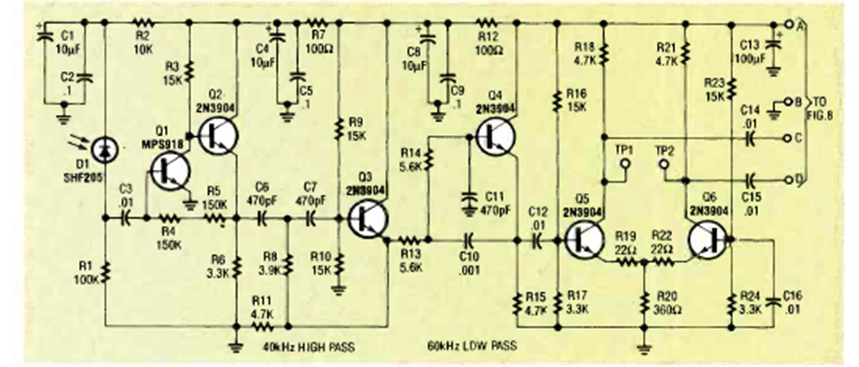

This is the receiver for the previous circuit we found in the December 1992 Radio Electronics magazine. The sensor is a photodiode that must have optical features such as lenses.
