Prescaler with 4066 (CB25776E)

Details
Written by: Newton C. Braga

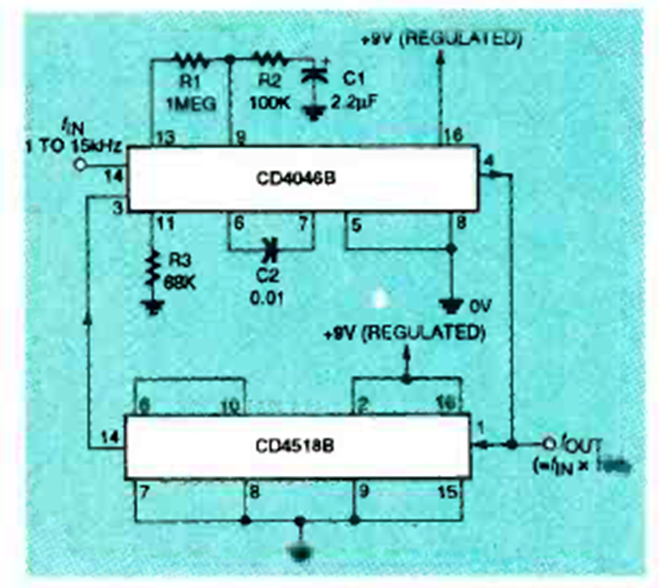

This circuit multiplies the frequency of a signal by 100. The circuit was found in the October 1994 issue of Electronics Now magazine. The PLL does not operate above approximately a dozen megahertz.
