Audio Voltmeter (CB25356E)

Details
Written by: Newton C. Braga

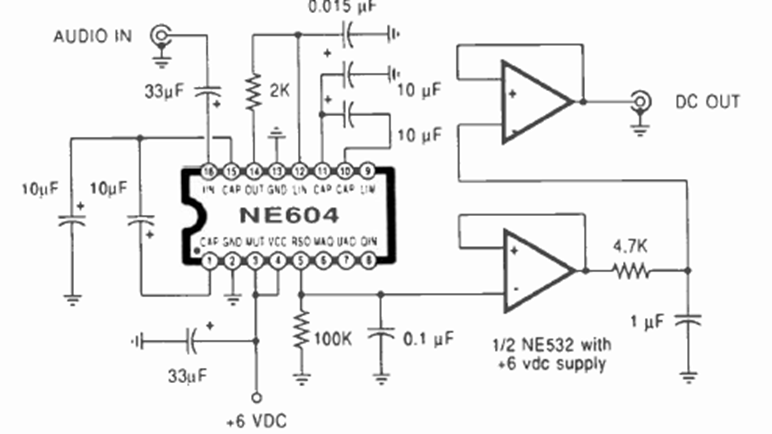

The purpose of this circuit is to measure the intensity of audio signals. We found it in the September 1990 issue of Radio Electronics magazine. The circuit works as a S meter.
