Passive Bass and Treble Control (CB25826E)

Details
Written by: Newton C. Braga

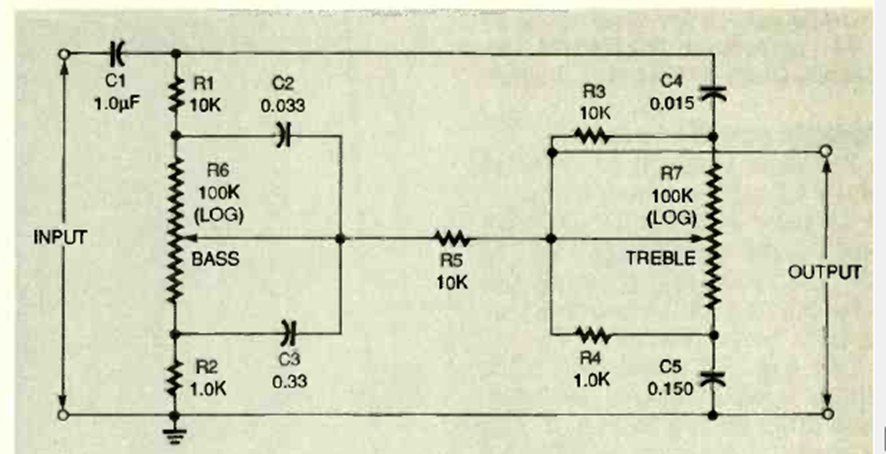

We found this passive circuit in the February 1995 Electronics Now magazine. The circuit is passive, presenting only attenuation that must be compensated by an amplification stage.
