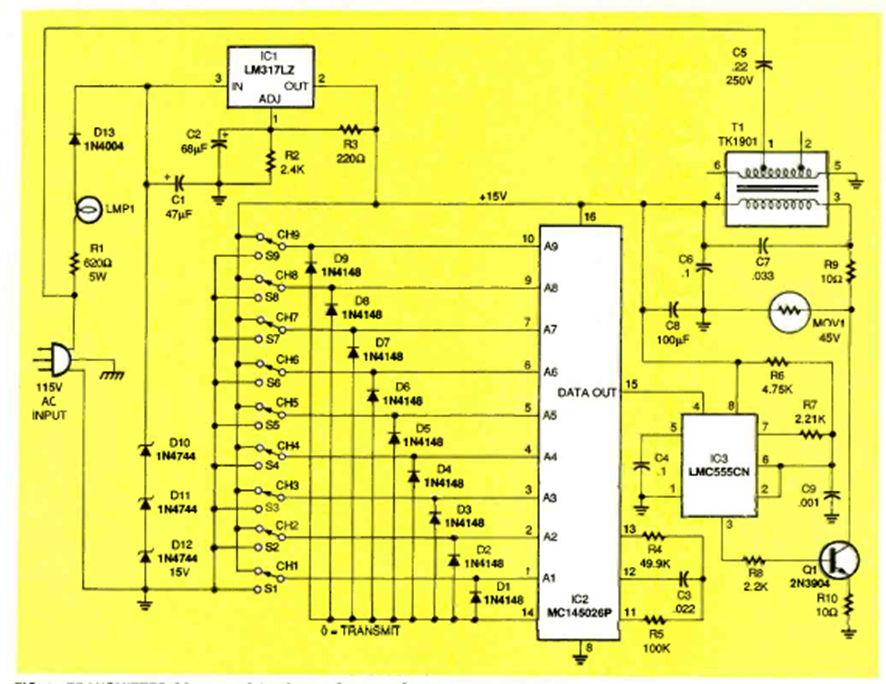

Power Grid Remote Control Transmitter (CB25852E)

This circuit was released in an Electronics Newsletter from June 1995. It uses a 10-channel encoder from that time.

| Clique na imagem para ampliar |
