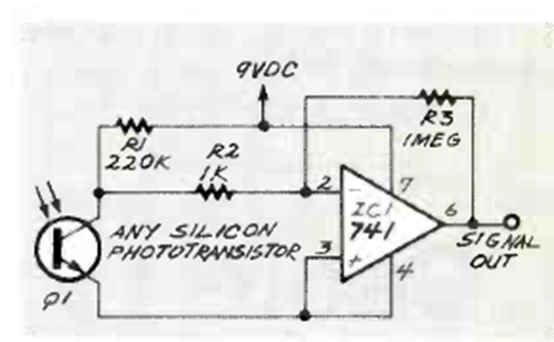

In the figure we have an amplifier using the 741 operational amplifier without the need for a symmetrical source. The circuit is suggested by a Radio Electronics from November 1992.
741 amplifier for phototransistor (CB25522E)
- Details
- Written by: Newton C. Braga
