Beam Communicator (CB25533E)

Details
Written by: Newton C. Braga

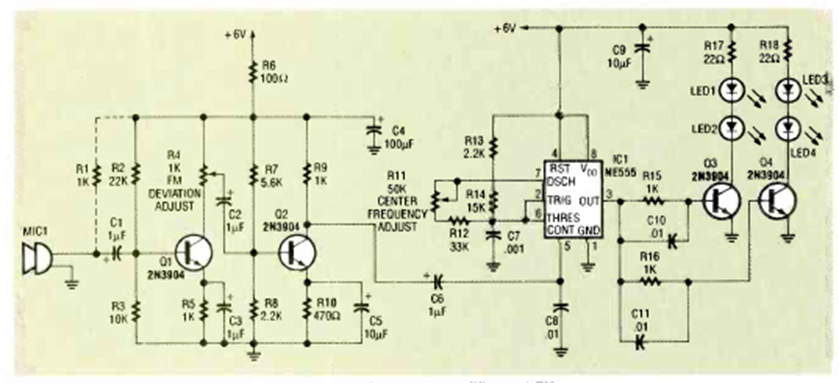

This circuit was found in the December 1992 Radio Electronics magazine. Range depends on optical capabilities and also weather conditions.




| Clique na imagem para ampliar |
