Voltage to Frequency Converter LM131 (CB25383E)

Details
Written by: Newton C. Braga

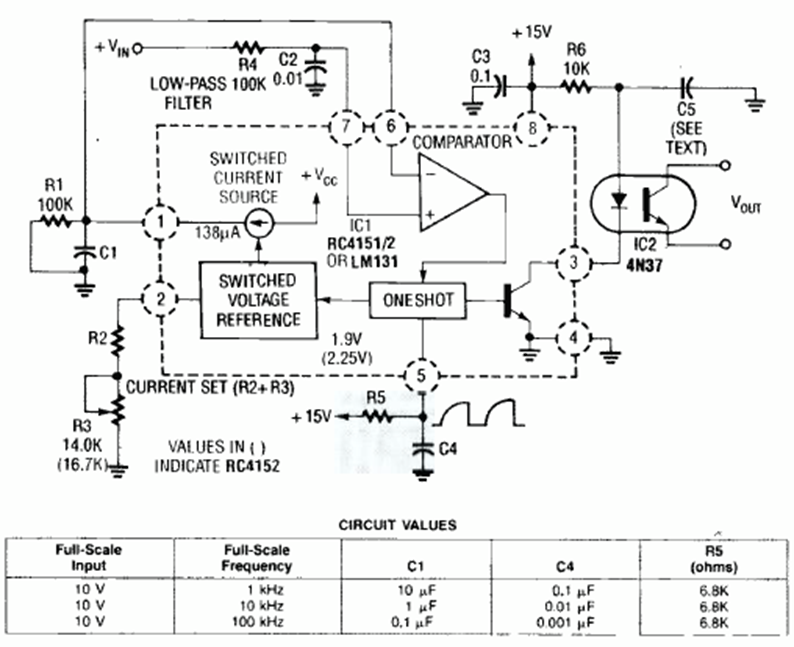

We found this circuit in the June 1991 issue of Radio Electronics magazine. The integrated circuit is still available. The table gives the component values.




| Clique na imagem para ampliar |
