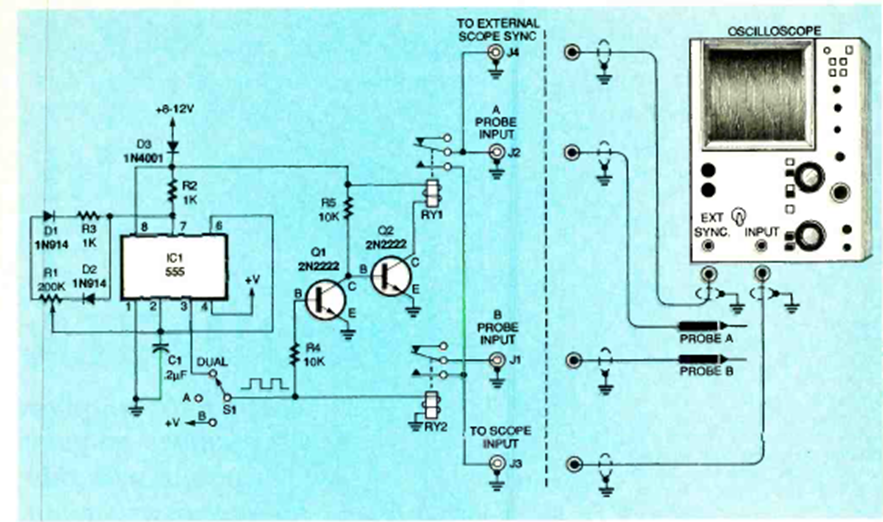

This circuit allows you to view two low frequency signals on a single channel oscilloscope. It was found in the June 1995 issue of Electronics Now magazine. The circuit consists of a very simple mechanical solution.
| Clique na imagem para ampliar |
Dual Trace Converter (CB25851E)
- Details
- Written by: Newton C. Braga
