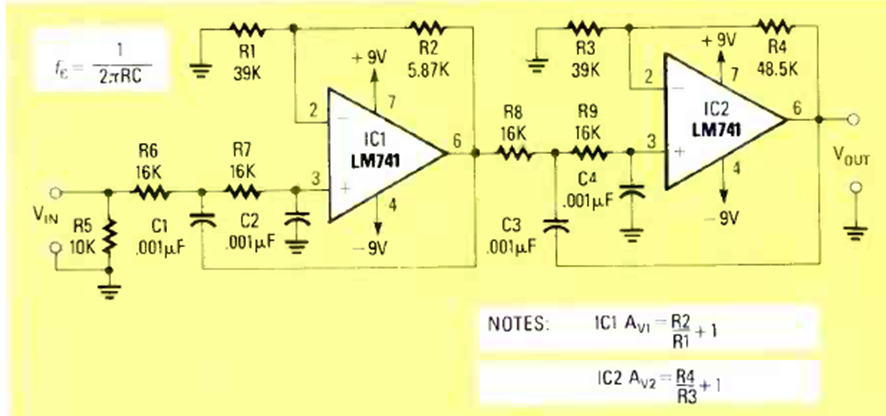

This filter was found in the May 1989 issue of Radio Electronics magazine. The components can be modified to operate at other frequencies. The power supply must be dual
| Clique na imagem para ampliar |
LM741 10 kHz Fourth Order Low Pass Filter (CB25933E)
- Details
- Written by: Newton C. Braga
