Synchronized Triac Control (CB25497E)

Details
Written by: Newton C. Braga

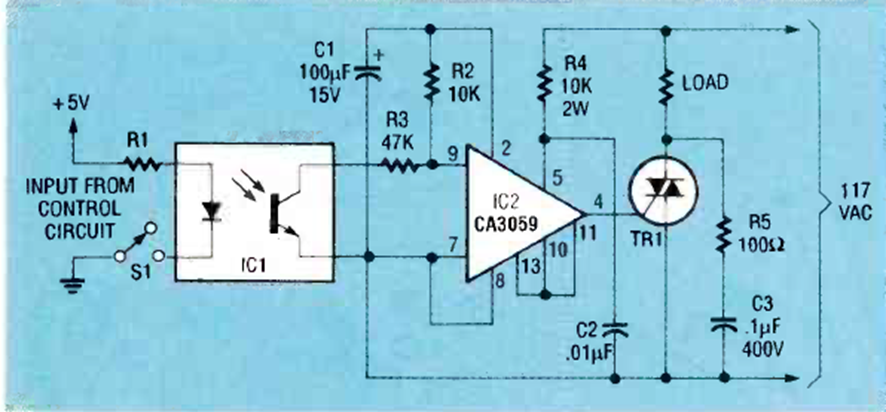

This circuit was found in the August 1992 issue of Radio Electronics magazine. The circuit can be used as an isolated shield for microcontrollers.
