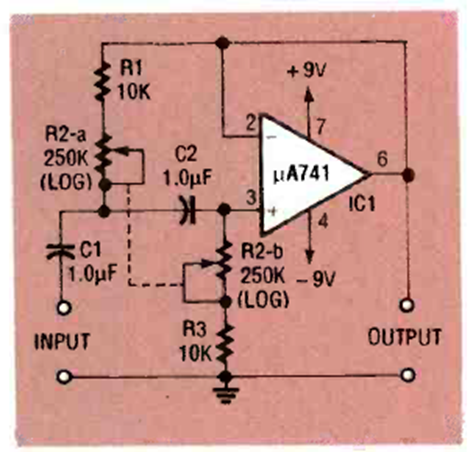

This variable high pass filter covers the range from 23 Hz to 700 Hz with the components used. The circuit is from an Electronics Now from August 1993. The source must be symmetrical.
Variable High Pass Filter (CB25599E)
- Details
- Written by: Newton C. Braga
