Sine to Square Converter (CB25676E)

Details
Written by: Newton C. Braga

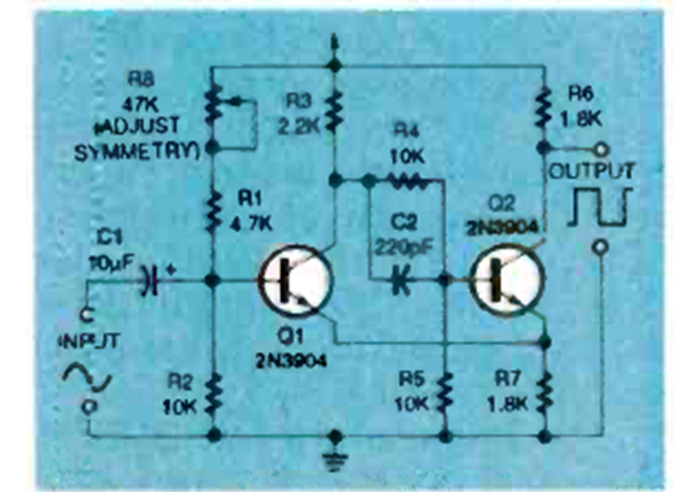

This Schmitt trigger that converts rectangular signals to square signals was found in the January 1994 issue of Electronics Now magazine. The circuit uses common general-purpose transistors.




| Clique na imagem para ampliar |
