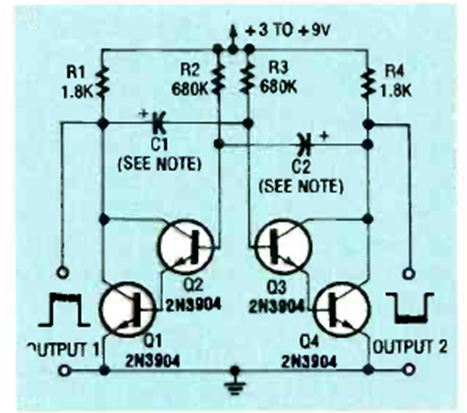

This Darlington circuit is intended for the production of very low frequency signals. The capacitors must be of good quality (low leakage). The circuit is from an Electronics Now from December 1993.
Astable with 4 transistors (CB25652E)
- Details
- Written by: Newton C. Braga
