Telephone Ringer Amplifier (CB25751E)

Details
Written by: Newton C. Braga

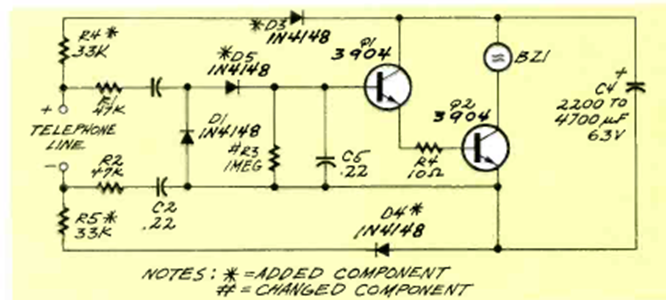

For analog lines, this circuit was found in the August 1994 issue of Electronics Now magazine. The transistors are common general-purpose types.
