European Emergency Siren 555 (CB25520E)

Details
Written by: Newton C. Braga

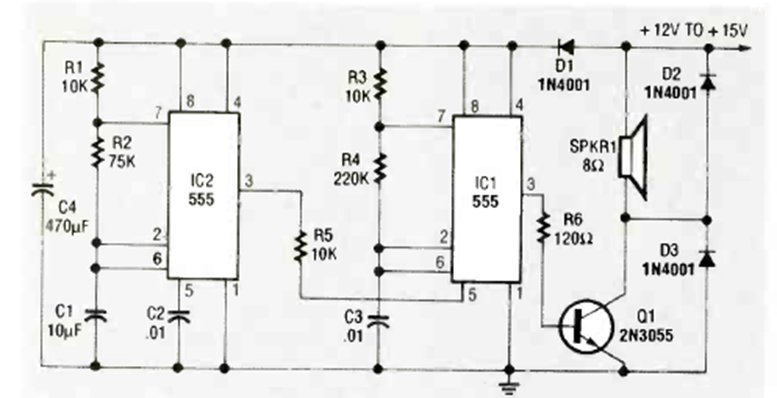

This circuit appears in several versions in publications of the time and can be modified by changing the capacitors. This one is from Radio Electonics magazine from October 1992.




| Clique na imagem para ampliar |
