True RMS Voltmeter (CB25353E)

Details
Written by: Newton C. Braga

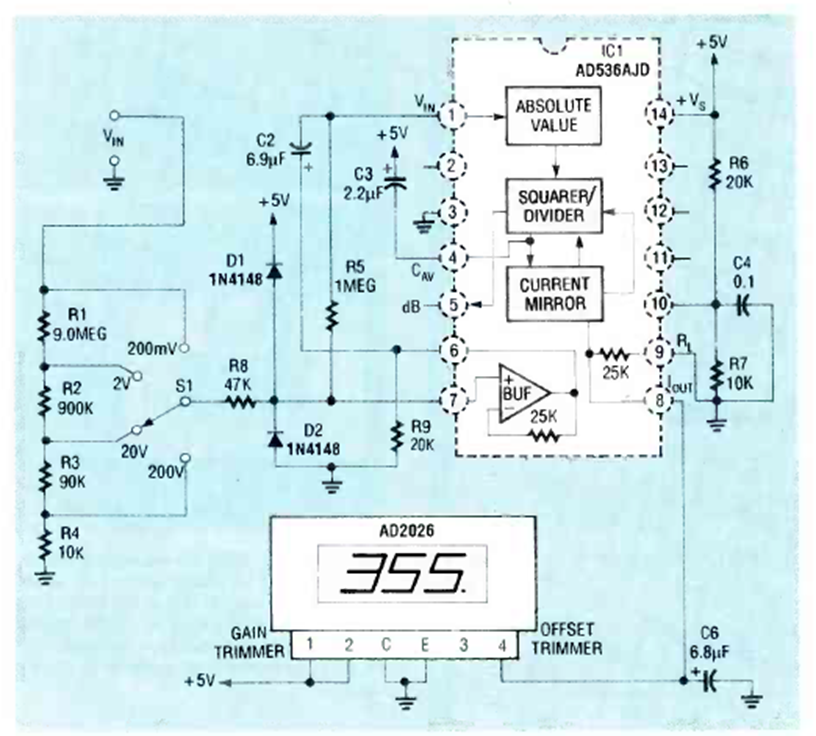

This circuit is from a Radio Electronics magazine from August 1990. The indicator module is of a common type at the time.
