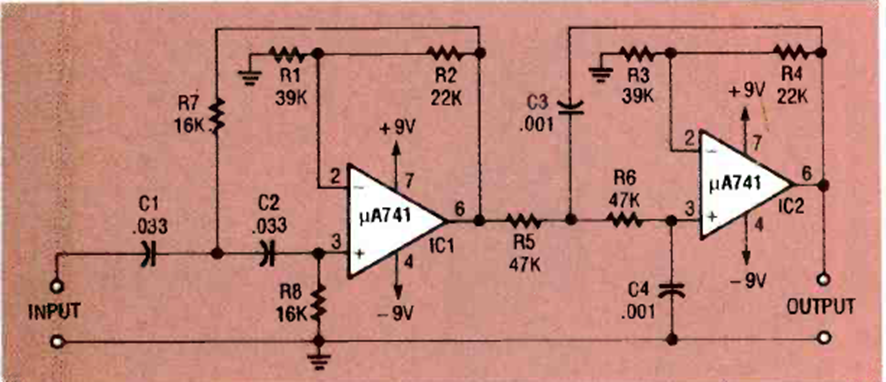

This filter with the operational 741 passes the frequency range between 300 Hz and 3,400 Hz. This range can be changed by changing the components. The circuit is from an Electronics Now from August 1993.
| Clique na imagem para ampliar |
Second-order bandpass filter (CB25598E)
- Details
- Written by: Newton C. Braga
