Pierce Oscillator (CB25680E)
- Details
- Written by: Newton C. Braga

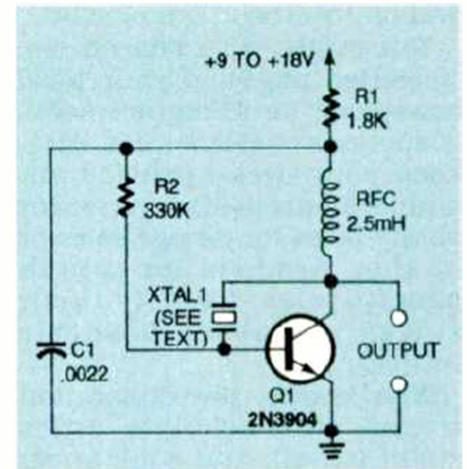

This version of the Pierce oscillator with the 2N3904 was found in the January 1994 issue of Electronics Now. The crystal can be clocked at 1000 kHz to a few megahertz.
