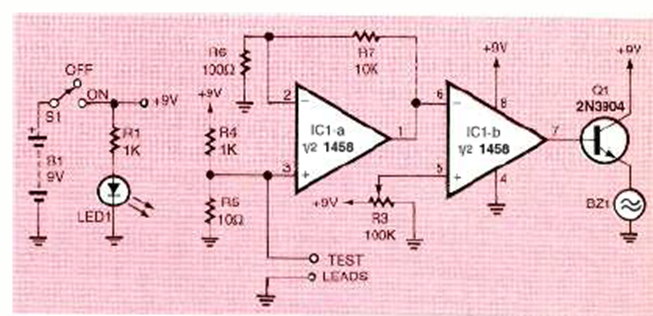

We found this circuit in the August 1994 Electronics Now magazine. The circuit is based on the MC1458 dual operational circuit, which is equivalent to the 741. The indication is via a buzzer.
| Clique na imagem para ampliar |
Adjustable continuity tester (CB25750E)
