Decibel Meter (CB25898E)

Details
Written by: Newton C. Braga

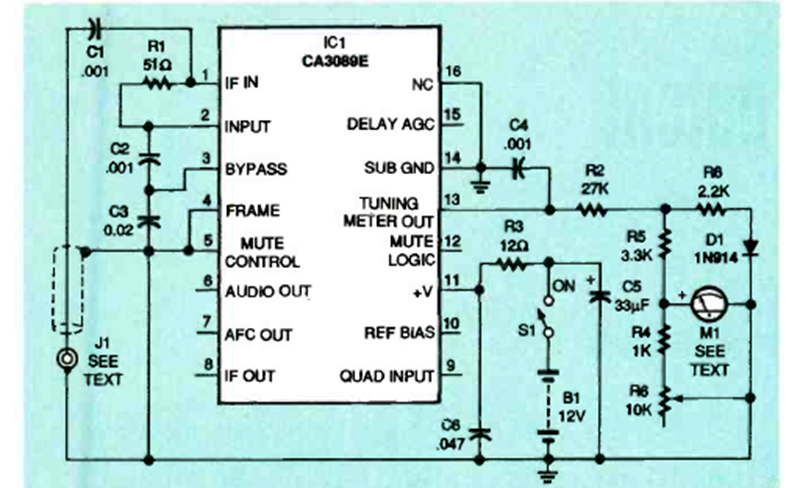

We found this measurement circuit with a logarithmic scale in an Electronics Now from November 1995. The circuit uses an integrated component from that time.
