Unlike the previous circuit, this circuit has a low impedance input. The components can be changed to operate at other frequencies. The circuit requires a dual power supply.

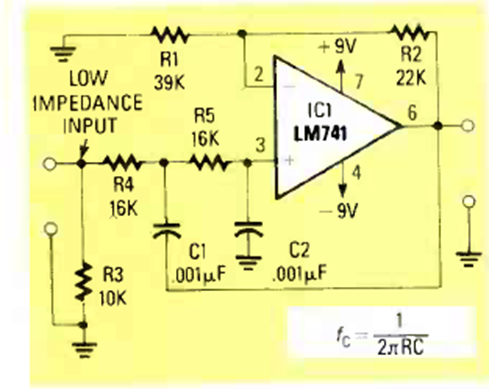

10 kHz Second Order Filter LM741 (CB25932E)
- Details
- Written by: Newton C. Braga
