4046 PLL Signal Tracer (CB25773E)

Details
Written by: Newton C. Braga

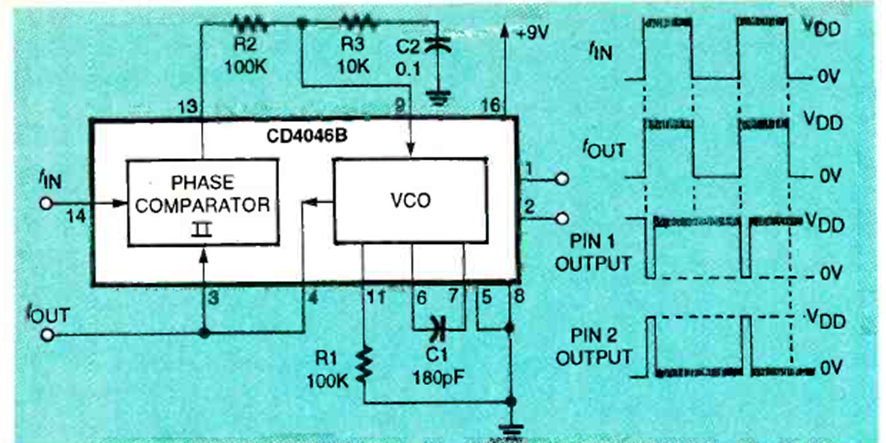

This circuit was found in the October 1994 issue of Electronics Now magazine. The 4046 PLL is not very common these days.
