Precision Thermoelectric Sensor (CB25464E)

Details
Written by: Newton C. Braga

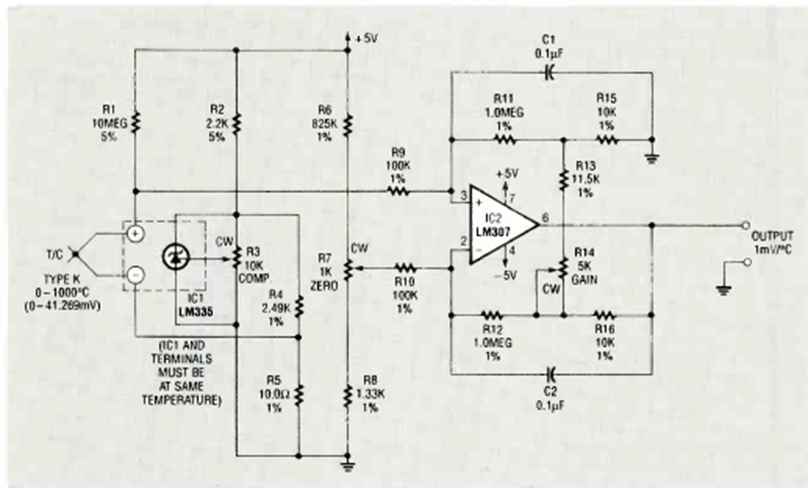

We found this circuit in the April 1992 issue of Radio Electronics magazine. The circuit uses an operating system that requires a symmetrical power supply.




| Clique na imagem para ampliar |
