Fourth-Order High Pass Filter 741 (CB25597E)

Details
Written by: Newton C. Braga

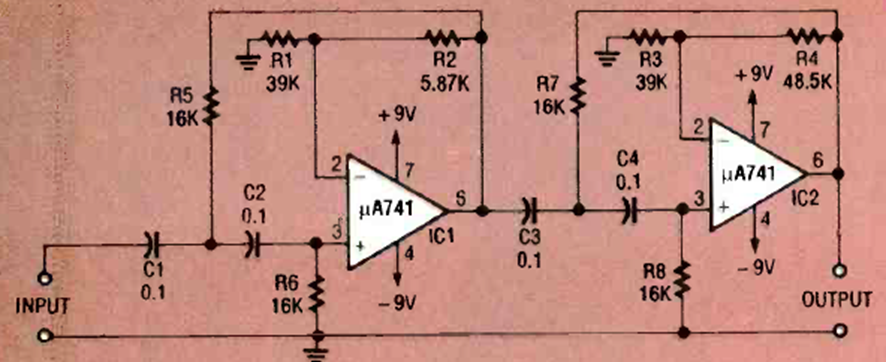

This 100 Hz filter was found in the August 1993 issue of Electronics Now. The components can be modified to operate at other frequencies.
