741 Logarithmic Amplifier (CB25723E)
- Details
- Written by: Newton C. Braga

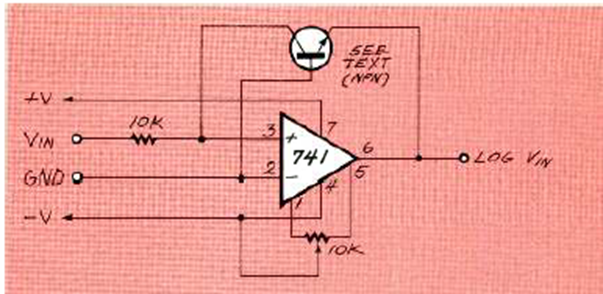

This logarithmic gain operating configuration was found in the June 1994 Electronics Now magazine. The power supply is dual, and the transistor may be a 2N2222.
