High Precision Resistor Matcher (CB25897E)

Details
Written by: Newton C. Braga

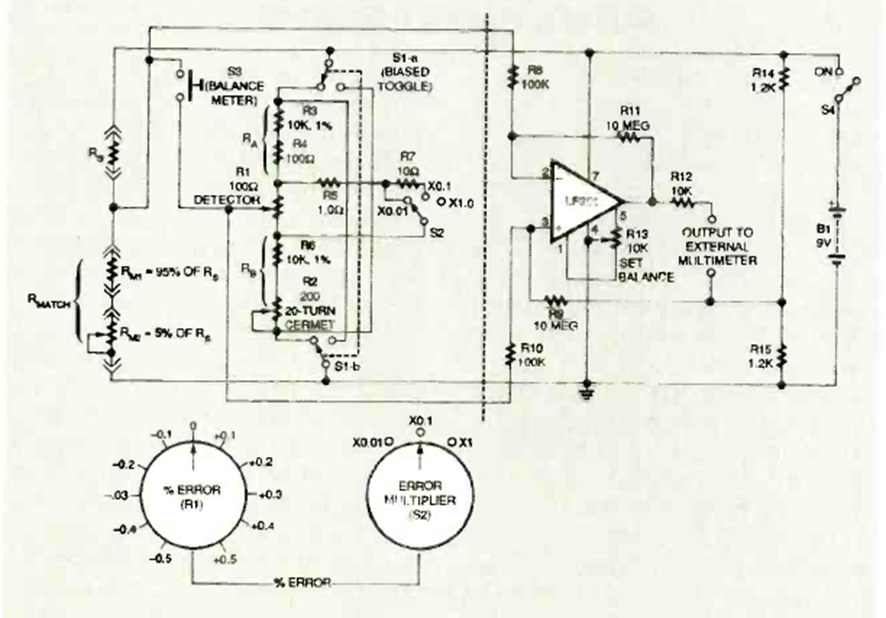

We found this circuit in the November 1995 Electronics Now magazine. The circuit is more accurate than the previous one using an external multimeter as an indicator.
