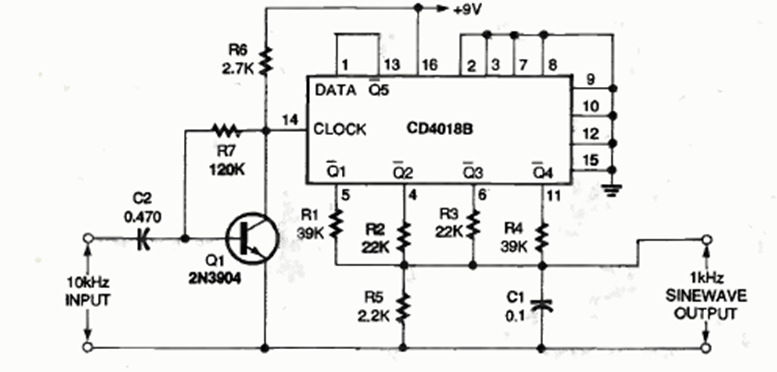

This digital CMOS circuit generates sinusoidal signals from a 10 kHz rectangular signal. The circuit generates a 1 kHz signal. We found it in the January 1996 issue of Electronics Now.
| Clique na imagem para ampliar |
4018 Digital Sine Wave Signal Generator (CB25916E)
- Details
- Written by: Newton C. Braga
