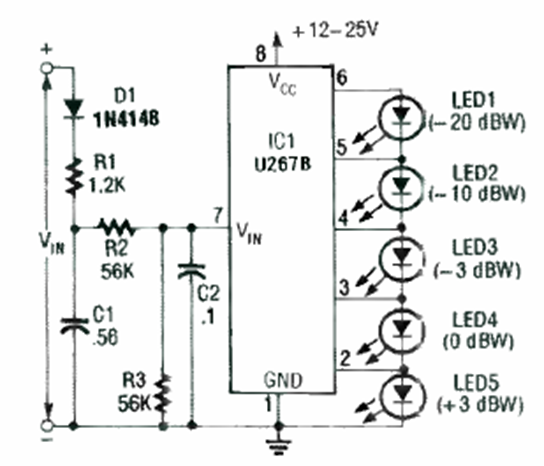

5 LED Log Scale with U257B (CB25442E)

Details
Written by: Newton C. Braga



The circuit was found in the February 1992 Radio Electronics magazine. The scale can be changed by changing R2 and R3.
