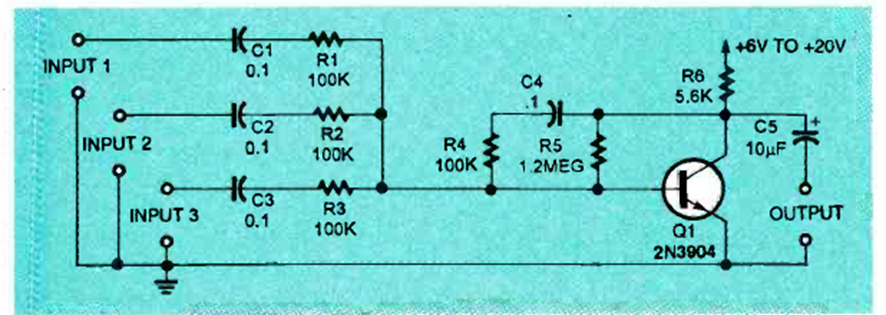

3-Channel Mixer (CB25702E)

Details
Written by: Newton C. Braga



This simple general-purpose transistor mixer was taken from an article in Electronics Now magazine in March 1994. You can choose a low-noise transistor such as the BC549.
