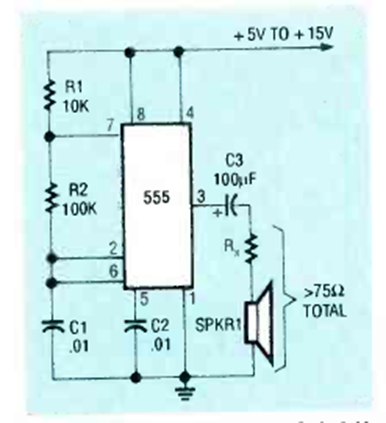

Found in an October 1992 Radio Electronics magazine article, this circuit generates a low-power tone in a speaker. R must be calculated so that the output impedance is greater than 75 ohms.
800 Hz 555 Tone Generator (CB25517E)
- Details
- Written by: Newton C. Braga
