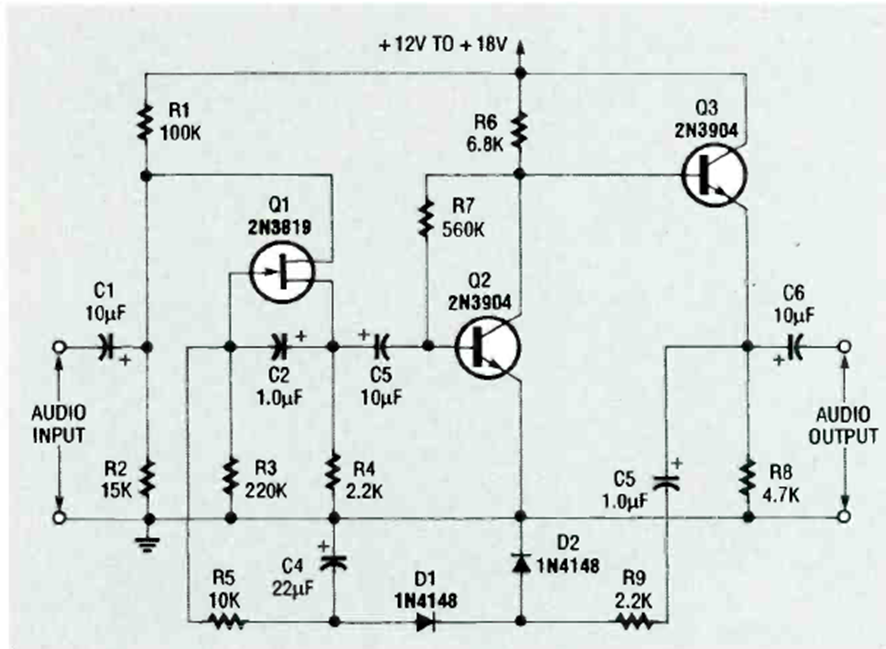

A JFET is used in this circuit to maintain constant gain. The circuit is from an Electronics Now issue of April 1993. The circuit can use any JFET and the remaining transistors are general purpose.
| Clique na imagem para ampliar |
Constant Volume Amplifier (CB25573E)
- Details
- Written by: Newton C. Braga
