Simple relay drive with transistor (CB25631E)
- Details
- Written by: Newton C. Braga

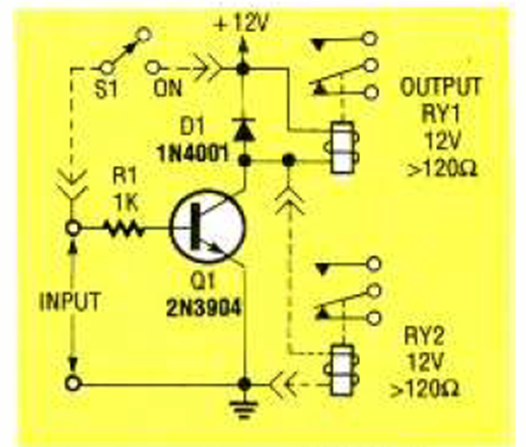

In the figure we have a simple shield of 1 transistor. The supply voltage depends on the relay. The circuit is from an Electronics Now from November 1993.
