10 LED 0 to 1 V Scale U237B and U247B (CB25440E)
- Details
- Written by: Newton C. Braga

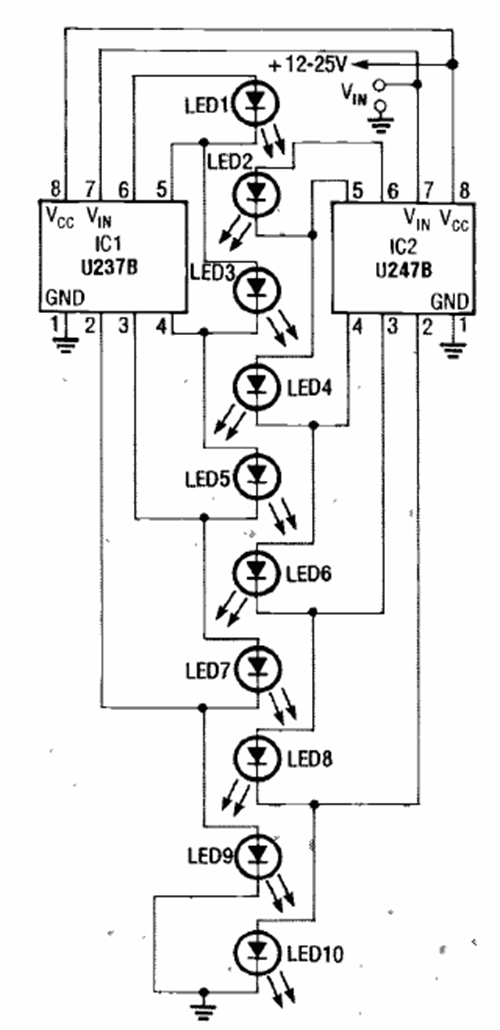

This linear bargraph circuit was found in the February 1992 issue of Radio Electronics magazine. The 10 LED scale measures from 0 to 1 V.
