Negative Voltage Generator (CB25844E)

Details
Written by: Newton C. Braga

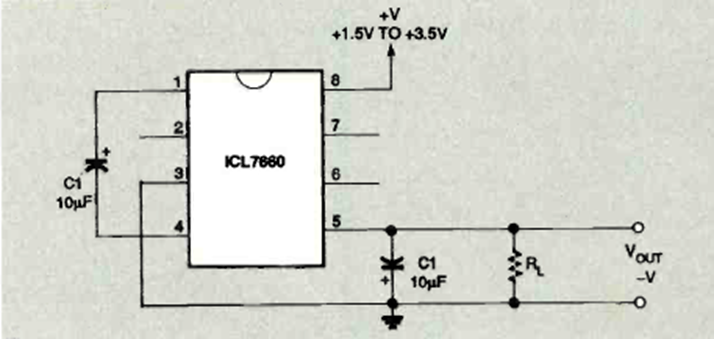

This very low power circuit is based on the ICL7860. We found it in an Electronics Now from April 1995. The output current is very low.
