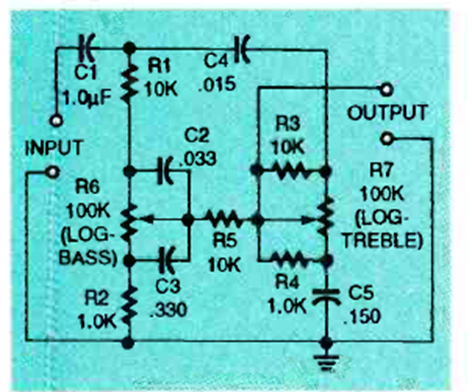

This network can be used in a sound project to control the tone. The circuit is from an Electronics Now magazine, from March 1994, remembering that it attenuates the signals.
Passive Bass and Treble Control (CB25700E)
- Details
- Written by: Newton C. Braga
