Dual Driver (CB25549E)

Details
Written by: Newton C. Braga



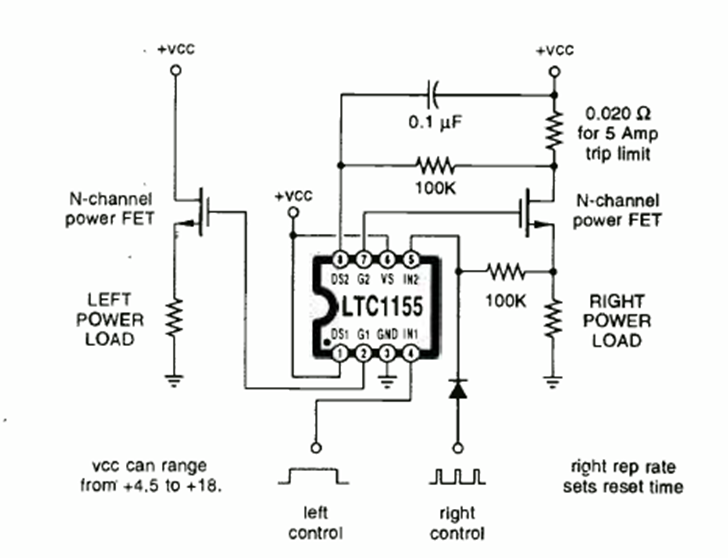

This circuit drives symmetrical loads through a single transistor. The circuit is from a Radio Electronics from January 1993. The power depends on the MOSFET used.
