Divider by N 4017 (CB25914E)

Details
Written by: Newton C. Braga

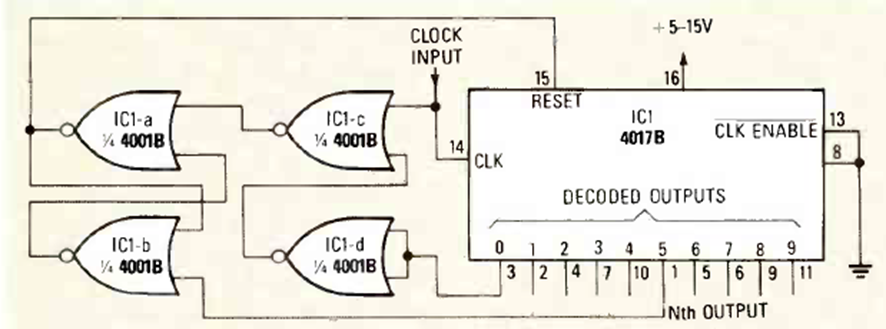

In the figure we have one of the many ways to program the counting of a 4017. The circuit uses additional gates and was found in the Radio Electronics magazine of April 1989.
