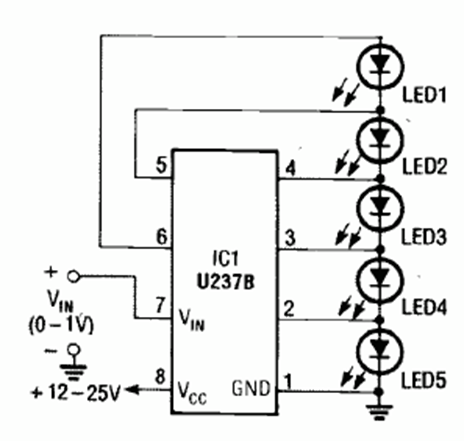

This linear LED scale circuit was found in the February 1992 issue of Radio Electronics magazine. Note that the current is limited to 20 mA by the IC itself, so there is no need for resistors. The scale is from 0 to 1 V.
5-LED Driver U2X7B (CB25439E)
