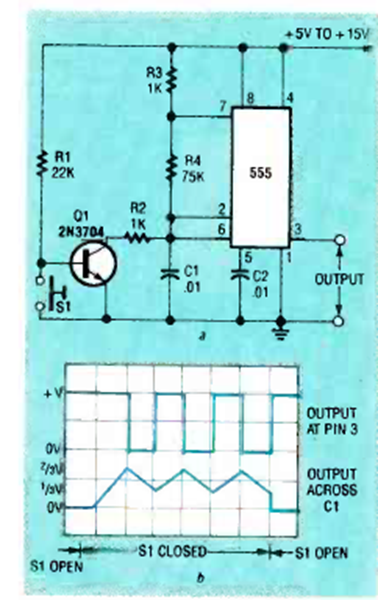

1 kHz 555 Triggered Oscillator (CB25515E)

Found in the October 1992 Radio Electronics magazine, this oscillator is controlled by switch S1. The frequency depends on C1, which can be changed.
