555 Sine and Square Schmitt Trigger (CB25528E)
- Details
- Written by: Newton C. Braga

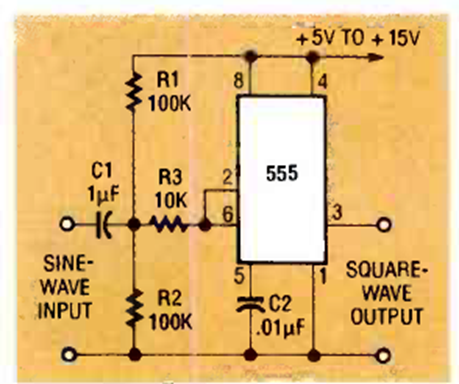

We found this circuit in the November 1992 Radio Electronics magazine. It works with both sinusoidal input signals and provides a rectangular signal at the output.
