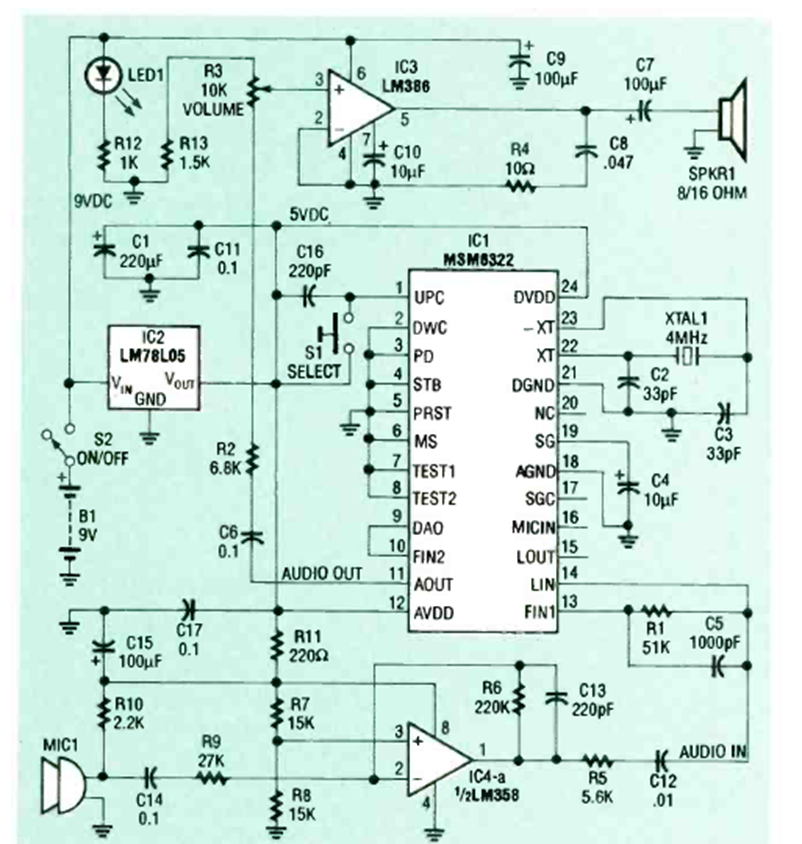

This circuit is based on a component from the time, the MSM0322 integrated circuit. It modifies the voice of someone speaking into a microphone and reproduces it through a speaker. The circuit has an LM386 amplifier for greater output power.
