Digital Motor Control (CB25629E)
- Details
- Written by: Newton C. Braga

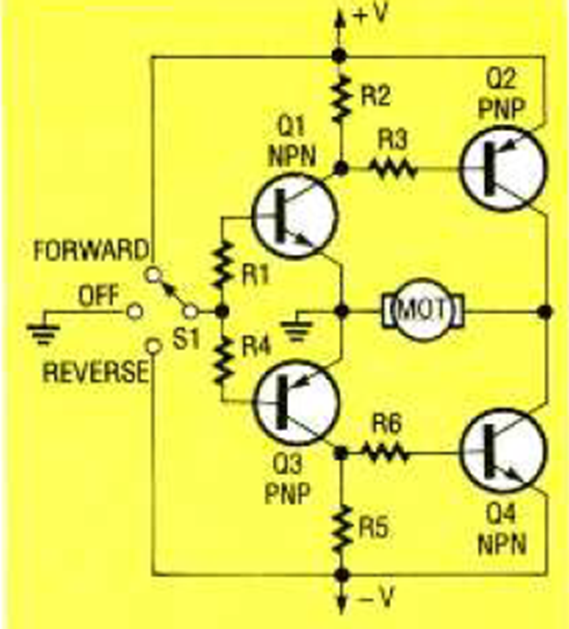

This circuit uses a switch to select the direction of rotation of a DC motor. It was found in the November 1993 Electronics Now magazine. Note the use of a symmetrical source.
