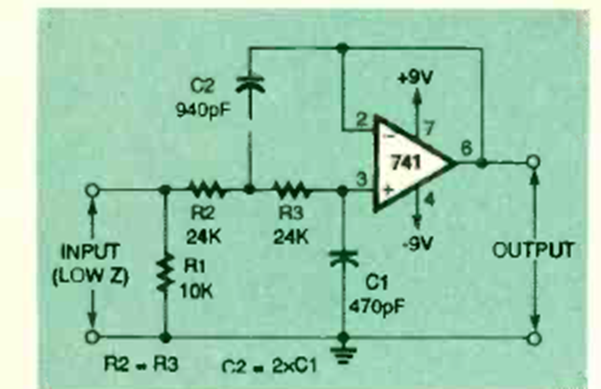

Low Pass Second Order Filter 741 (CB25818E)

This unity gain circuit was found in the February 1995 Electronics Now magazine. The frequency is 10 kHz, and the power supply must be dual.
