1kHz Triggered Oscillator 555 (CB25513E)
- Details
- Written by: Newton C. Braga

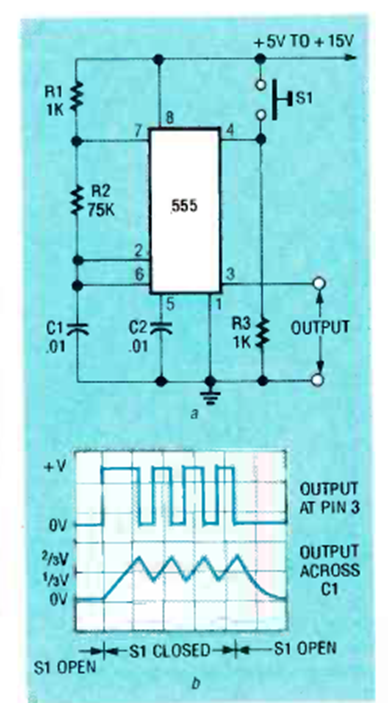

We found this circuit in the October 1992 Radio Electronics magazine. The frequency is given by C1 which can have its value changed. Observe the generated signal.waveforms.
