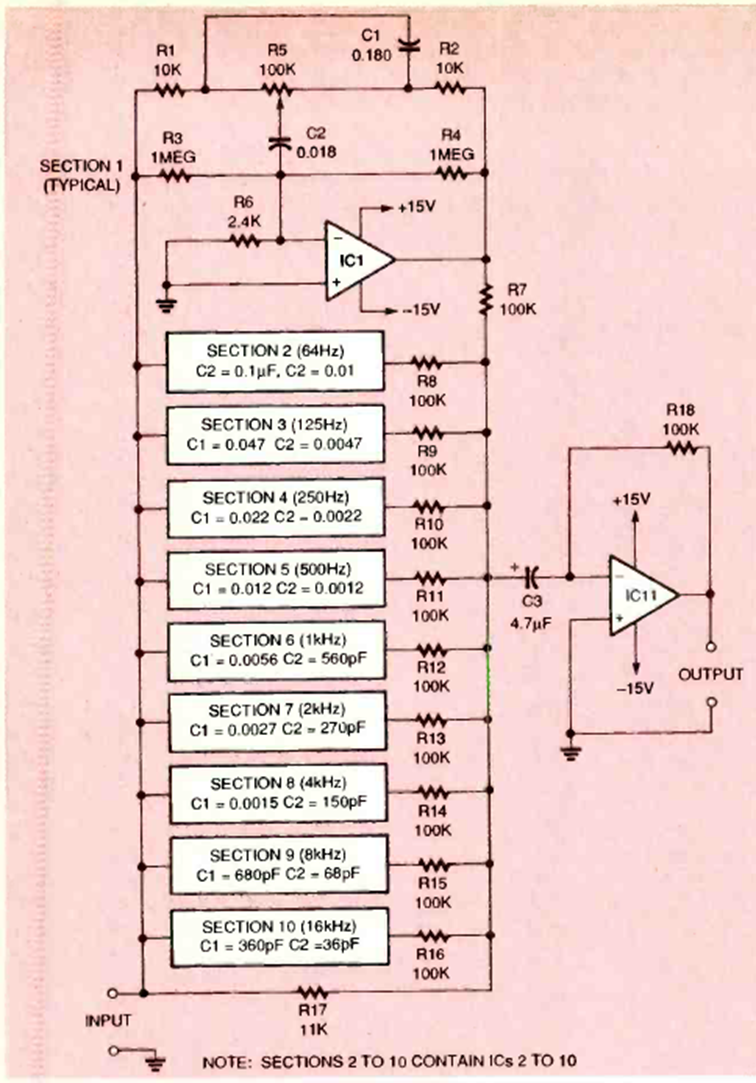

In this circuit we have the details of a section with the others repeating with the values indicated in the diagram. The circuit is from an Electronics Now from March 1995, and the power supply must be dual.
| Clique na imagem para ampliar |
Graphic Equalizer 741 (CB25841
- Details
- Written by: Newton C. Braga
