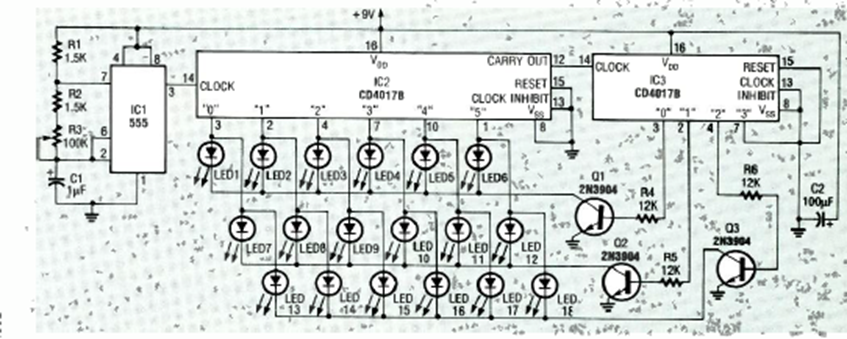

This interesting circuit of 18 multiplexed LEDs was found in the February 1992 issue of Radio Electronics magazine. The circuit has its speed controlled by R3. The LEDs form moving bars of 6 LEDs.
| Clique na imagem para ampliar |
6 x 3 LED Multiplexer Circuit 4017 (CB25437E
- Details
- Written by: Newton C. Braga
